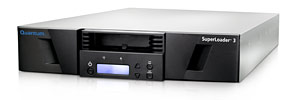

Quantum SuperLoader 3, one LTO-4HH tape drive, Model B, eight slots, LVD SCSI, rackmount, barcode reader (EMEA)
Includes one eight-cartridge removable magazine, Symantec Backup Exec QuickStart software, 30 data and five cleaning barcode labels, one HD68 male SCSI terminator, one 6.6ft (2m) HD68 (autoloader) to VHDCI (server) SCSI cable, and one 10ft (3.1m) Ethernet cable with RJ45 connectors. Uses HD68 female connector. Includes North American, European and UK power cords.
Physical
Width (in/cm)
16.7 / 42.42
Length(in/cm)
27.5 / 69.85
Height(in/cm)
3.41 / 8.66
Weight (lbs/kg)
31 / 14.06
Environmental
Temperature Range (Dry Bulb)
Operating
+10°C to +35°C
Nonoperating
-40° C to +65°C
Temperature Variation
Operating
10°C per hour
Nonoperating
20°C per hour
Humidity
Operating
20% to 80% noncondensing
Nonoperating
10% to 90% noncondensing
Gradient
10% per hour without condensation
Wet Bulb
Operating
26°C max
Nonoperating
29°C max
Altitude
Operating
-153 m to 3048 m
Nonoperating
-153 m to 12192 m
Performance by Drive Type
Drive Type
Autoloader Capacity
Native/Compressed* (GB)
Performance
Native/Compressed* (GB/hr)
LTO-3HH
6,400 / 12,800
216 / 432
LTO-4
12,800 / 25,600
432 / 864
LTO-4HH
12,800 / 25,600
288 / 576
LTO-5
24,000 / 48,000
504 / 1008
LTO-5HH
24,000 / 48,000
504 / 1008
LTO-6
40,000 / 100,000
576 / 1440
Power
Line Voltage
60Hz System: 90-265 VAC;
50Hz System: 90-265 VAC
Line Frequency
47 - 63 Hz
AC Input Current
60Hz System: 4.0 A (RMS) for 115 VAC;
50Hz System: 4.0 A (RMS for 230 VAC
Power Consumption
60Hz = 75W
50Hz = 80W
