| Q80 Specifications |

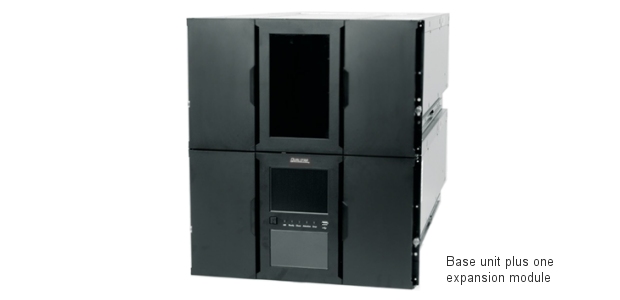

Base Module
|
Base + 6 Expansion Modules
|
| Drive Types Supported |
LTO-6 or LTO-7 |
| Drive Interfaces |
SAS or FC |
| Number of Tape Drives |
1-6 |
Up to 42 |
| Number of Cartridge Slots |
80 |
560 |
| I/O Port Slots |
0 or 10 (configurable) |
0 or 10 (configurable) per module |
| Native Capacity – LTO-6 / LTO-7 |
200 TB / 480 TB |
1.4 PB / 3.36 PB |
| Max Compressed (2.5:1) Capacity – LTO-6 / LTO-7 |
500 TB / 1.2 PB |
3.5 PB / 8.4 PB |
| Max Native Data Rate – LTO-6 / LTO-7 |
3.46 TB/hr. / 6.48 TB/hr. |
24.19 TB/hr. / 45.36 TB/hr. |
| Max Compressed Data Rate – LTO-6 / LTO-7 |
8.64 TB/hr. / 16.20 TB/hr. |
60.48 TB/hr. / 113.40 TB/hr. |
| Barcode Reader |
Standard |
| Rackmount Kit |
Standard |
| Maximum Number of Partitions* |
20 |
| Height |
6U (10.5″ / 26.7cm) |
42U (73.5″ / 186.7cm) |
| Width |
18.7″ / 47.5cm |
| Depth |
35.1″ / 89.2cm |
| Weight |
90.4 lb / 41.0 kg |
573.4 lb / 260.0 kg |
| Input Voltage |
100-240 VAC (50-60Hz) |
| Power Consumption |
350W |
2.45kW |
| Warranty |
2 years |
