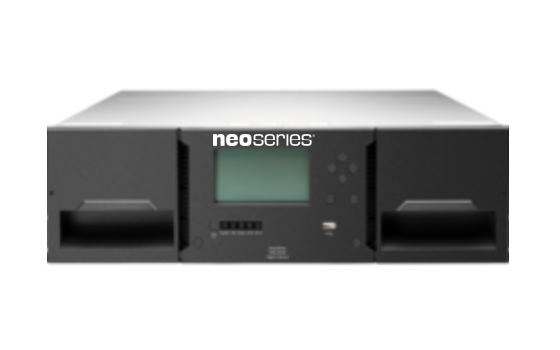

NEOxl 40 |
# of tape cartridge slots (base) |
32 |
 |
# of tape cartridge slots (expansions) |
40 |
 |
# of tape cartridge magazines (base) |
2 |
 |
# of tape cartridge slots per magazine (base) |
20 |
 |
# of mail slots (base) |
Up to 3 |
 |
# of tape drives (base) |
Up to 3 HH |
 |
# of tape drives (expansions) |
Up to 3 HH |
 |
Tape drives supported |
LTO-8, LTO-7 |
 |
max. # of modules supported |
7 |
 |
max. # of cartridge slots* |
272 |
 |
max. # of tape drives* |
21 |
 |
Max. native capacity per module (TB) |
LTO-8: 400TB
LTO-8M: 300TB
LTO-7: 200TB |
 |
Max. compressed capacity per module (TB) |
LTO-8: 1PB
LTO-8M: 700TB
LTO-7: 500TB |
 |
Max. native capacity - fully scaled (TB) |
LTO-8: 3.3PB
LTO-8M: 2.4PB
LTO-7: 1.6PB |
 |
Max. compressed capacity - fully scaled (TB) |
LTO-8: 8.2PB
LTO-8M: 6.1PB
LTO-7: 4.1PB |
 |
Max. native data transfer rate per module (TB/hr.) |
LTO-8: 3.2TB/hr.
LTO-8M: 3.2TB/hr.
LTO-7: 3.2TB/hr |
 |
Max. compressed data transfer rate per module (TB/hr.) |
LTO-8: 8.1TB/hr.
LTO-8M: 8.1TB/hr.
LTO-7: 8.1TB/hr. |
 |
Max. native data transfer rate - fully scaled (TB/hr.) |
LTO-8: 22.7TB/hr.
LTO-8M: 22.7/hr.
LTO-7: 22.7TB/hr. |
 |
Max. compressed data transfer rate - fully scaled (TB/hr.) |
LTO-8: 56.7TB/hr.
LTO-8M: 56.7TB/hr.
LTO-7: 56.7TB/hr. |
 |
Interfaces |
6Gb SAS, 8Gb FC (dual port) |
 |
Connectors |
Mini SAS, LC Optical FC |
 |
Form Factor |
3u |
 |
Dimensions (inches) |
5.24" x 18.98" x 34.27" |
 |
Dimensions (cm) |
13.3cm x 48.2cm x 87.3cm |
 |
Weight (pounds) |
55.34 lbs. |
 |
Weight (Kg) |
21.1 kg |
 |
Power Requirements |
230 watts (nominal) |
 |
Input Requirements |
100 to 240 V, 50 to 60 Hz |
 |
Humidity (non-condensing; operating) |
20% to 80% RH non-condensing |
 |
Temperature range (operating) |
10° to 35°C |
 |
Reliability |
>2,000,000 MCBF (mean cycles between failures); <10 minutes MTTR (mean time to repair) |
 |
Safety |
CB, CE, NRTL |
 |
Emissions |
CE, FCC, ICES, EMC/EN, CCL, ETL |
 |
Standard Warranty |
NEOxl 40 libraries include a one-year Silver Support Program warranty offering, which includes 5x9 telephone support and NBD onsite support of FRUs, with customer replacement of CRUs |
